Two-stage Emotional Pedal Drum Electromechanical Guitar

Product information :

Color :GEM BOX II

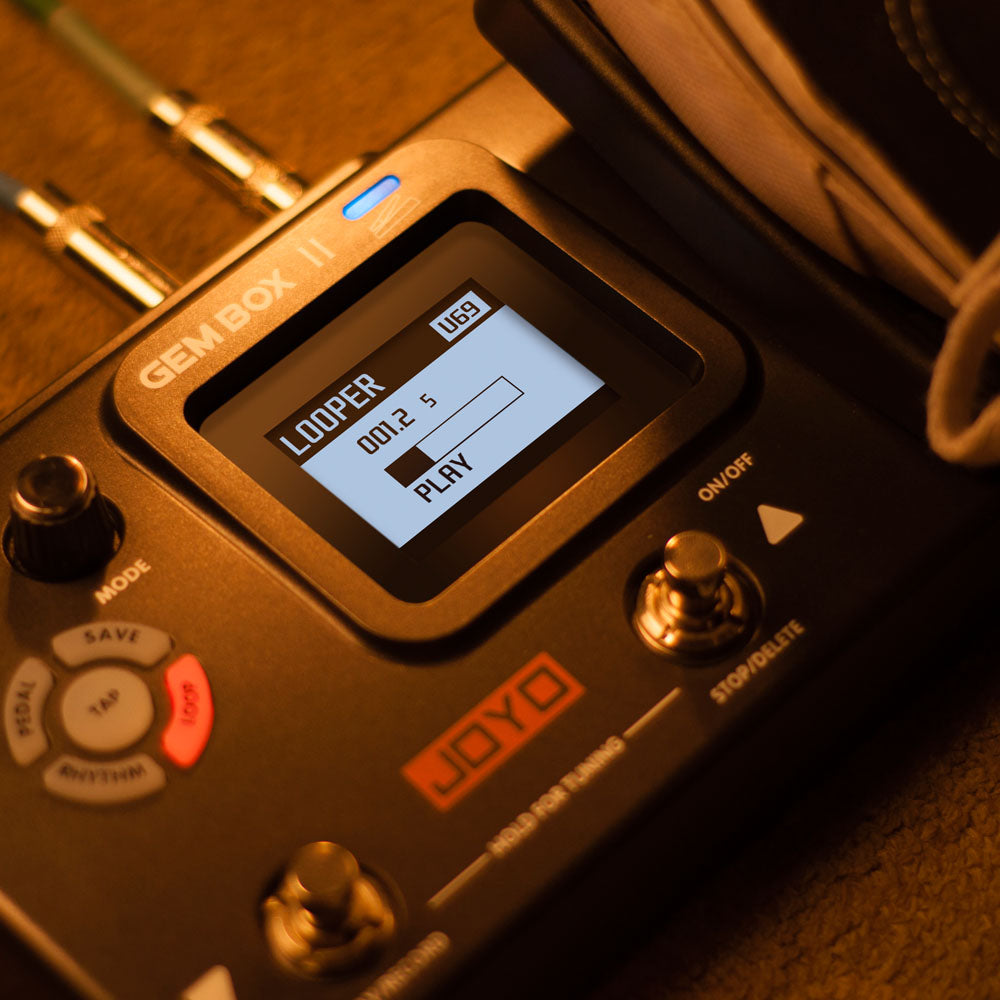

Mode: 8 effect modules/66 effect types, 23 distortion effects/7 classic speaker simulations, 80 sets of preset parameters/80 sets of user parameters, 40 sets of drum machine rhythms, 3-minute loop recording function

Size Information:
Dimensions: 35.5 x 18.2 x 8cm


Product detailed operating instructions：

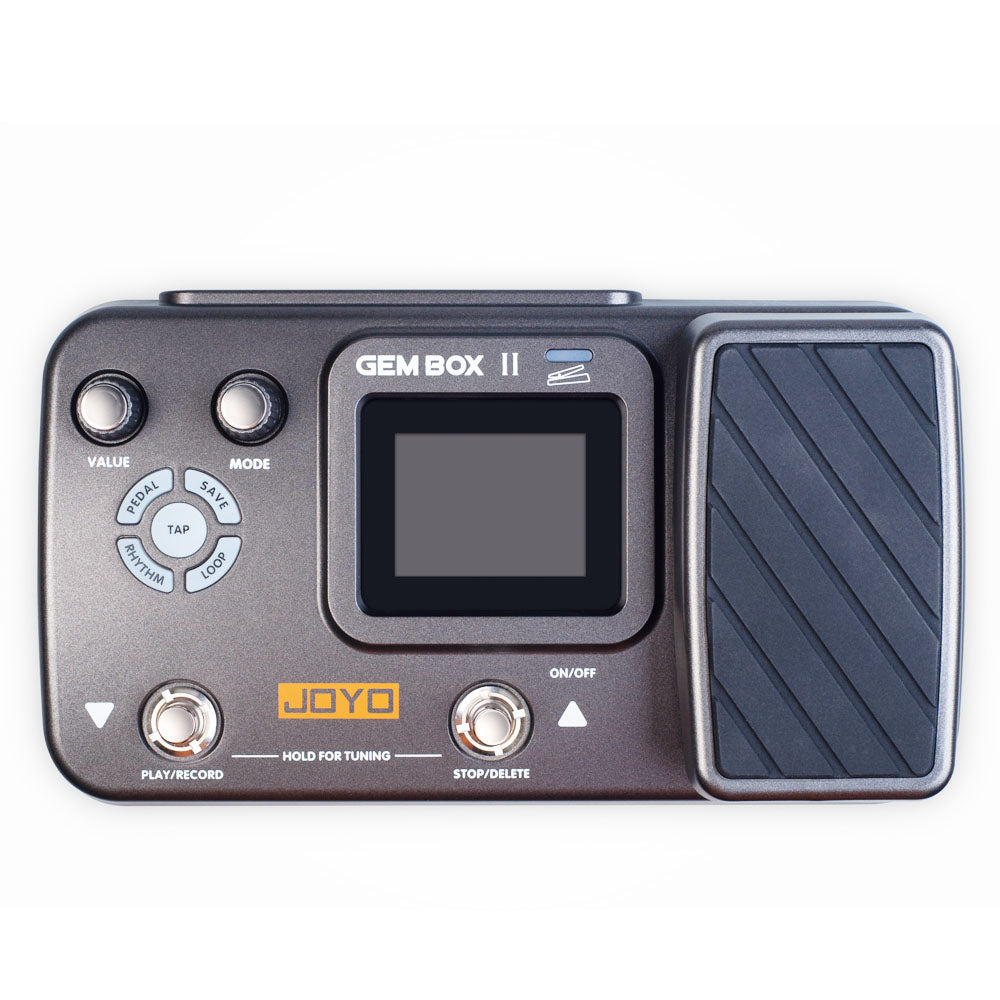

1. Use the SELECTOR gear selector switch
Select the state/effect/parameter module to be adjusted by rotating the gear selector.
2. Use the VALUE knob
Change the effect type/parameter type by pressing the button, and turn the knob to adjust the parameter (for no parameter adjustment
You can also change the type of effect by turning the knob in the section, such as a distortion module).
3. Use PATCH to switch pedals
Press the left pedal to switch down to PATCH, press the right pedal to switch up to PATCH, press and hold one of the
Hold down one pedal to achieve continuous and fast switching; press two PATCH pedals at the same time to enter BYPASS/TUNER
(Bypass/Tuning) function, press and hold at the same time for 3 seconds to enter the silent tuning function.
4. PATCH storage function
The characters on the left side of the LED represent Bank, and the characters on the right side represent Patch Number. Each Bank has 10
Patches ( 0~9 ), a total of 8 Banks with a total of 80 storage locations, Bank A~d is the user tone
color, Bank 0~3 are preset sounds, namely: 40 user sounds (A0~d9, which can be changed and saved)
), 40 preset sounds (00~39, cannot be changed).
Press the VALUE button in the STORE file to store the current effect parameters.
It will flash to indicate the current PATCH position. At this time, you can turn the VALUE knob or press the PATCH
The foot switch switches the pedal to change the PATCH position, press the STORE key again to confirm, set all parameters
After the data is stored to the PATCH, the screen display accelerates flashing, and the screen stops flashing after the storage is successful.
Note: Drum machine function parameters will not be stored in PATCH, and will keep the current settings when the machine is not turned off.
parameters, all the drum machine function parameters return to their default values after a power failure.
5. Change the PATCH switching method
Press and hold the PATCH + key (the right PATCH pedal) to power on, the screen flashes "PF" for 3 seconds, then
Then enter the normal display. In this mode, use the PATCH +/- keys to switch the PATCH, change the PATCH
The number will flash but the timbre will not change, you need to press the PATCH +/- keys simultaneously to confirm the selection.
The PATCH number will stop flashing and the patch will switch to the currently selected PATCH.
Note: This mode will not be saved when power off, the system will return to the normal PATCH switching method after shutdown.

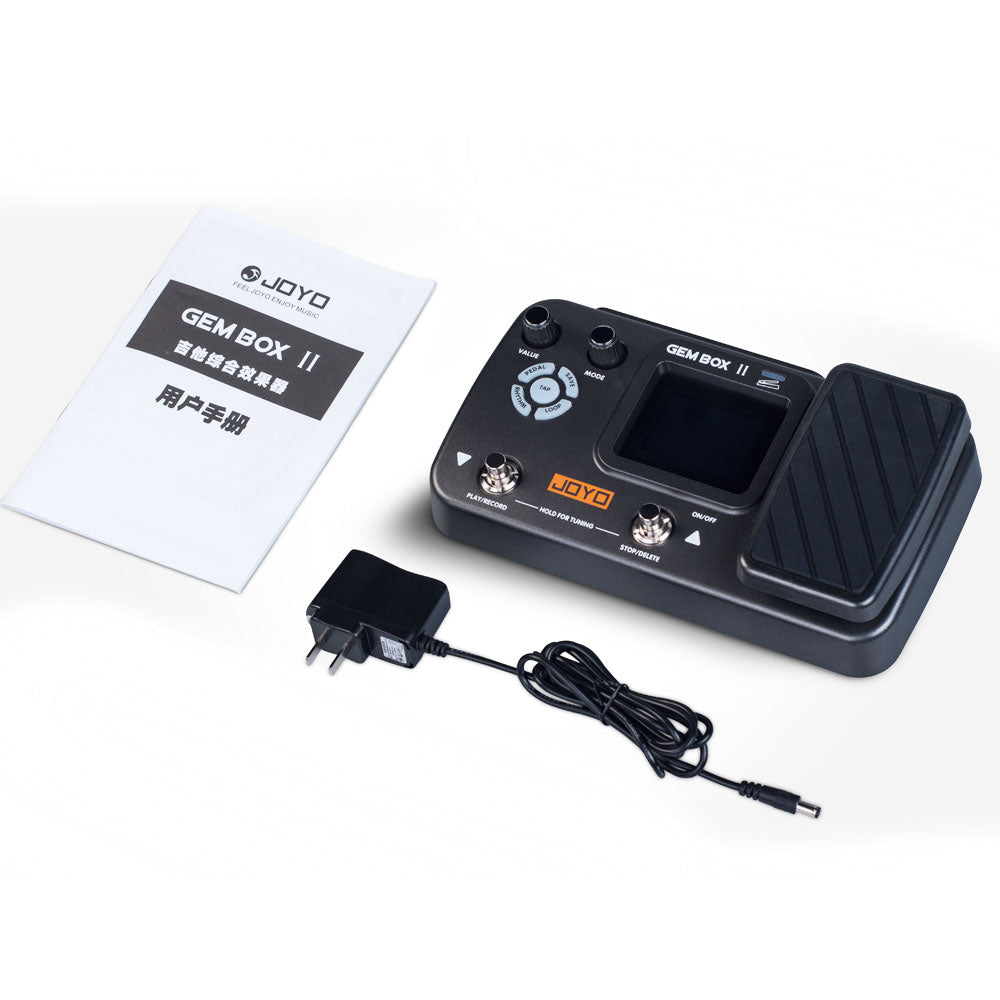

Packing list:
Guitar comprehensive effect device*1+Power cord + manual*1
